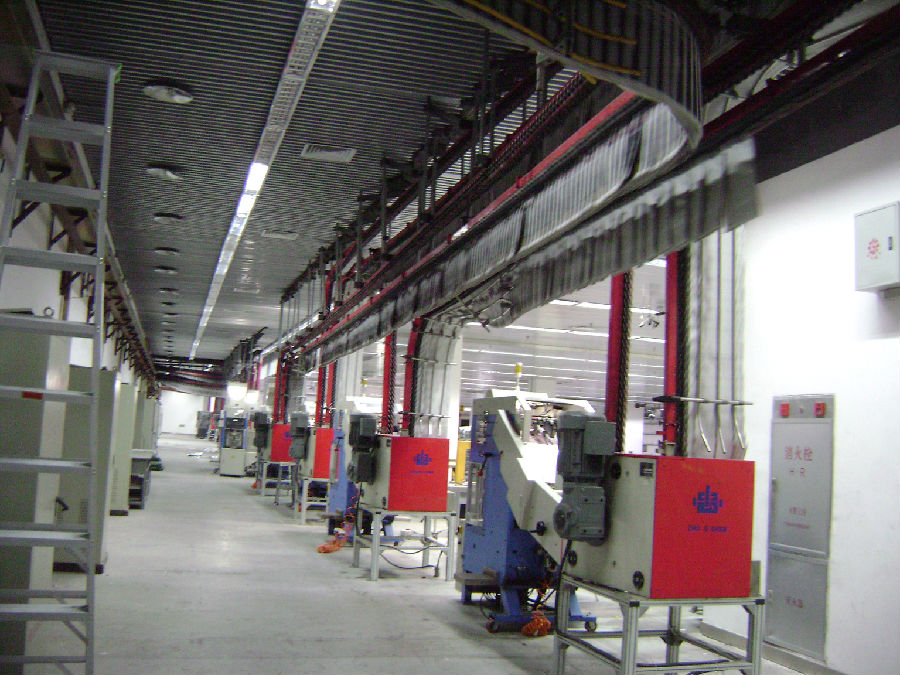

multi-dimensional conveying system (by air) - one of supporting devices for unmanned printing

 Certified by Press and Publication Administration, the People's Republic of China, and granted national patent

Patent number: 201521072022.5

The first product was installed for trial printing by Zhejiang Daily in 2000, at an hourly speed of 60000. In 2001, the product was certified by Press and Publication Administration. Through 6 years of application, the product has been operating normally and satisfied customers.

Currently, the speed of product series ranges from 45000 to 100000

Low speed: 45,000

Intermediate speed: 75,000

High speed: 100,000

The product can be matched with any printer, and it is one and only post-press conveyer for high-speed printing, free of any restriction, dirty, or breakage on newspapers

System features: the conveyor is applied to discharge and output of various pressworks. It is equipped with unilateral clamping conveying line and inverter motor, thus to ensure operational reliability. It can be turned by 90° according to the condition of printing site.

 Technical parameters:
