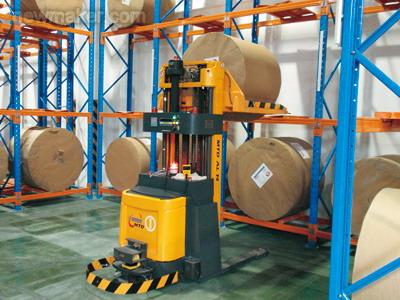

System features: laser navigation; network communication; omnibearing travel; precise positioning. Main Technical Specifications of Automated Guided Vehicle
Items |
Technical Specifications |
AGV system control mode | Centralized scheduling, monitoring, and management by control station |
AGV control mode |
Automatic / semi-automatic / manual (optional) | Communication mode |
Wireless LAN |
Navigation mode |
Laser navigation / magnetic navigation |
Driving mode | DC servo double steering wheel / DC servo double wheel differential action |
Charging mode | Automatic online fast-charging / offline charging / battery exchange | Direction of movement | Forward, backward, turning-left, turning-right, self- spinning / omnibearing | Running speed | 0m / min ~ 100m / min, CVT | Navigation accuracy | ±10mm | Parking position accuracy | ±4 mm | Load capacity | 0～4000kg |
Main Technical Specifications of AGV Items | Technical Specifications | Position accuracy | ±10mm | Angular accuracy | ±0.1° | Emission source | Semiconductor laser | Laser safety type | Class I, extreme safety | Detection angle | 360° | Rotational frequency | 8Hz±10% | Operating voltage | 24V±25％ | Protection class | IP65 | Operating temperature | 0～50℃ |
|
